HAAKE™ Rheomex 19/25 QC and CTW100 QC Extruder System

HAAKE™ Rheomex QC laboratory extruders, consist of single-screw extruder (19/25 QC) and conical twin-screw compounder (CTW100 QC) designed for the HAAKE™ PolyLab™ QC torque rheometer platform, enable analysis of the rheological and processing behavior as well as continuous compounding and plasticising of diverse materials. Using minimal sample quantities, these extruders allow users to simulate production processes and create films or profiles for subsequent analysis.

Haake Rheomex 19/25 QC single-screw extruders provide reliable data during the extrusion process, allowing for verification of key process parameters (speed, energy, temperature) for new materials or the production of small quantities of a novel polymer (in forms like strands, sheets, pellets, or blown films) during research and development. These extruders feature measuring ports for melt pressure and temperature to monitor the process parameters along the extruder barrels.
HAAKE CTW100 QC conical twin-screw extruder, part of the HAAKE PolyLab QC system, is ideal for continuous compounding and plasticizing. Its counter-rotating, intermeshing screws provide a well-defined residence time, ensuring consistent production of process-critical polymers. The extruder’s gentle yet intensive dispersion capabilities effectively mix additives and pigments.

The system offers a range of screw geometries, allowing for process customization with varying compression ratios, venting, and mixing sections. Wear-resistant screws and barrels enhance the system’s longevity. Standard pellet feeders and specialized feeders for powders, pastes, liquids, or highly viscous materials like rubber complete the setup.

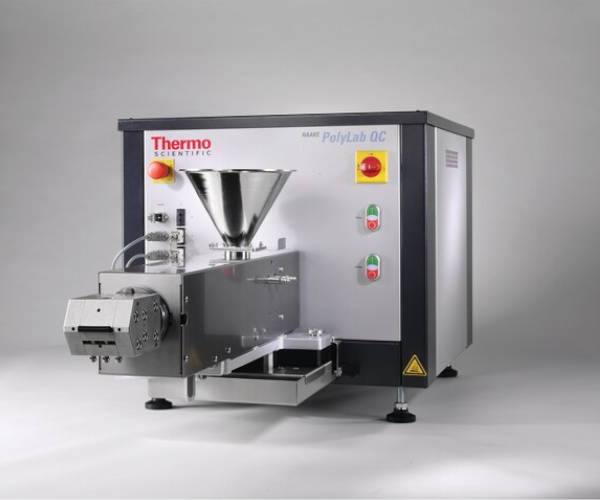

haake-rhemex-qc-single-screw-extruder-250206
Single screw extruder applications:
  • Testing of the plasticizing behaviour
  • Testing the performance of additives and fillers
  • Measuring of the melt temperature and pressure along the barrel to optimize process parameters
  • Provide a homogeneous and constant flow melt
  • Production of strands, sheets, cast and blown films
  • Extrusion of ceramics and feed stock
  • Melt rheology
Conical twin-screw extruder applications:
  • Extrusion of thermally critical materials such as PVC
  • Compounding of fillers and reinforcing materials
  • Blending of polymers
  • Pilot plant production of master batches
  • Continuous mixing of recycling materials
  • Mixing of nano clays and carbons
  • Discharge for further process states
ENQUIRY FORM
REQUEST A QUOTE / ENQUIRY FORM
RFQ
Technical Specifications Rheomex 19/25 QC
Length 25 L/D
Diameter 19.05 mm
External temperature zone 1 (2 optional)
Sensor ports 1/2" 20 UNF up to 6
Maximum torque 160 Nm
Maximum operating temperature 450 °C
Maximum speed 200 1/min
Maximum operating pressure 700 bar
Feeding Hopper
Technical Specifications Rheomex CTW100 QC
Barrel:
Design Conical
Length 300 mm
Diameter 31.8/20 mm (rear/front)
Feed section Cooled (air or liquid)
Venting/Feeding ports Venting optionable
Screws:
Design Conical
Alignment Intermeshing, counter-rotating
Functions:
Overload protection Electronical
Maximum torque 200 Nm
Maximum operating temperature 450°C
Maximum operating pressure 700 bar
Feeding Hopper/volumetric feeder
Typical output (material dependant) 0.2 to 10 kg/h
Maximum speed 200 rpm
Mains connection via PolyLab drive unit
Die Geometries
  • Sheet, Tape & Ribbon
  • Horizontal Rod Die / Vertical Rod Die
  • Multistrand Die Three Strands
  • Catheter Die
  • Garvey Die
  • Wire Coating Die
  • Blown Film Die
  • Spinning Die
  • Filter Die
  • Pipe & Tubing Die
  • Rod Capillary Die
  • Slit Capillary Die
Post-Ex
  • Water bath & strand pelletizers
  • Conveyor belts
  • Sheet and ribbon take-off
  • Face cut pelletizer
  • Take-off systems for blown films and coated wires
  • Die swell sensor
